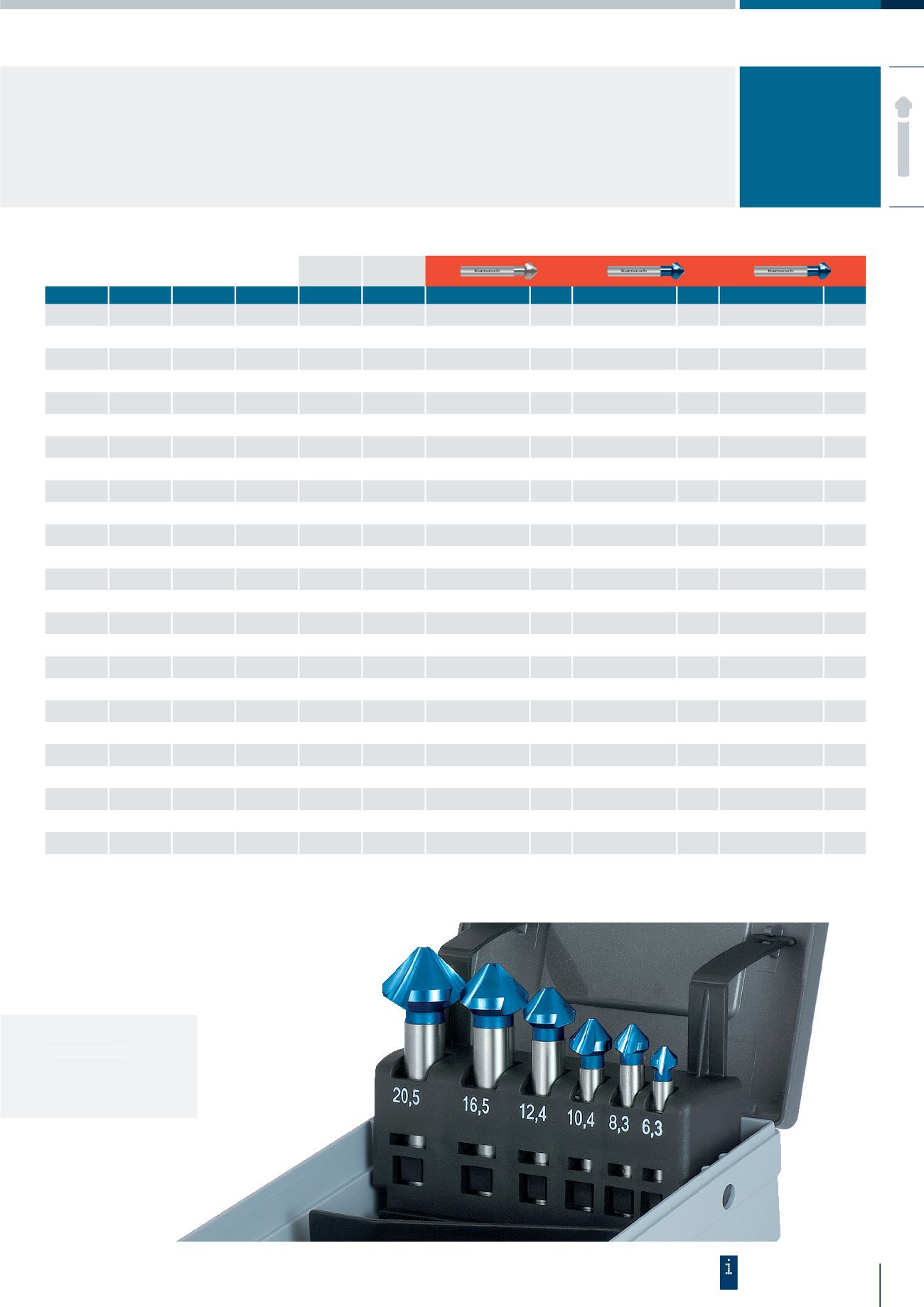

Näpflin Produktaktion - page 5

5
NÄPFLIN TOOLS //www.nste.ch
Art.
20.1740
20.1745
20.1750
BEDIENUNGSHINWEISE
OPERATING INSTRUCTION
SEITE/ PAGE 22
d1
Ø mm
d3
Ø mm
Gesamtlänge
Total length
L1 mm
Ø
Schaft
Shank
d2 mm
Senkung nach DIN 74
Countersinking per DIN 74 20.1740 20.1745 20.1750
AF BF
€ € €
4,3 1,3 40,0 4,0 – – 201740010 6,85 201745010 12,80 o 201750010 –
5,0 1,5 40,0 4,0 M 2,5 – 201740020 6,85 201745020 12,80 o 201750020 –
5,3 1,5 40,0 4,0 – – 201740030 6,85 201745030 12,80 o 201750030 –
6,0 1,5 45,0 5,0 M 3 – 201740040 7,15 201745040 13,10 o 201750040 –
6,3 1,5 45,0 5,0 – M 3 201740050 7,15 201745050 13,10 201750050 25,40
7,0 1,8 50,0 6,0 M 3,5 – 201740060 7,40 201745060 13,40 o 201750060 –
7,3 1,8 50,0 6,0 – – 201740070 7,40 201745070 13,40 o 201750070 –
8,0 2,0 50,0 6,0 M 4 – 201740080 7,50 201745080 13,50 o 201750080 –
8,3 2,0 50,0 6,0 – M 4 201740090 7,50 201745090 13,50 201750090 27,25
9,4 2,2 50,0 6,0 – – 201740100 7,90 201745100 13,90 o 201750100 –
10,0 2,5 50,0 6,0 M 5 – 201740110 7,90 201745110 13,90 o 201750110 –
10,4 2,5 50,0 6,0 – M 5 201740120 7,90 201745120 13,90 201750120 28,40
11,5 2,8 56,0 8,0 M 6 – 201740130 8,45 201745130 14,40 o 201750130 –
12,4 2,8 56,0 8,0 – M 6 201740140 9,50 201745140 16,15 201750140 36,35
13,4 2,9 56,0 8,0 – – 201740150 9,50 201745150 16,15 o 201750150 –
15,0 3,2 60,0 10,0 M 8 – 201740160 12,10 201745160 18,80 o 201750160 –
16,5 3,2 60,0 10,0 – M 8 201740170 12,10 201745170 18,80 201750170 45,90
19,0 3,5 63,0 10,0 M 10 – 201740180 13,90 201745180 20,55 o 201750180 –
20,5 3,5 63,0 10,0 – M 10 201740190 13,90 201745190 20,55 201750190 50,10
23,0 3,8 67,0 10,0 M 12 – 201740200 17,60 201745200 25,05 o 201750200 –
25,0 3,8 67,0 10,0 – M 12 201740210 17,60 201745210 25,05 201750210 75,20
26,0 3,9 71,0 12,0 M 14 – 201740220 21,50 201745220 29,00 o 201750220 –
28,0 4,0 71,0 12,0 – M 14 201740230 21,50 201745230 29,00 o 201750230 –
30,0 4,1 71,0 12,0 M 16 – 201740240 24,40 201745240 31,85 o 201750240 –
31,0 4,2 71,0 12,0 – M 16 201740250 24,40 201745250 31,85 201750250 95,30
Sets siehe
nächste Seite
Sets see
next page
